SSi Artificial Lift Intelligent Long Stroke Rod Lifting Systems

Artificial Lift Pumping Unit

SSi Artificial Lift provides the world’s longest hydraulic stroke rod lift system – designed, built, and fully tested in Calgary, Canada.

This cutting-edge system features the industry’s longest stroke and highest load capacity, offering 99.7%+ measured uptime.

With a patented three-chamber hydraulic cylinder powered by nitrogen and hydraulic fluid, the system boasts a 2:1 stroke length ratio for unmatched efficiency.

Request More Info

Key Features & Advantages

Simple, standard interface with touchscreen controls
Easy logic upgrades
PLC-controlled automatic shutdowns
Redundant cable system

Reduced setup and maintenance times – even ships on a single truck lowering transportation costs
Repair-friendly: No heavy counterweights or large cranes required
Watch our time-lapsed installation video

Client’s Key Benefits

Higher downhole pump compressions, with customers reporting over 85% pump efficiency in gassy wells
No large rotating counterweights, enhancing safety
Installation completed in under 4 hours
Integrated Pump Off

Controller
SCADA-ready with remote access for monitoring
Modular design with two components: pump and power unit
All parameters, including speed and stroke length, are adjustable via touchscreen

Product Specifications

Models 250 – 800

240 – 360 Inches Stroke Length
25,000 – 80,000 Lbs Structure Capacity

Download Specs

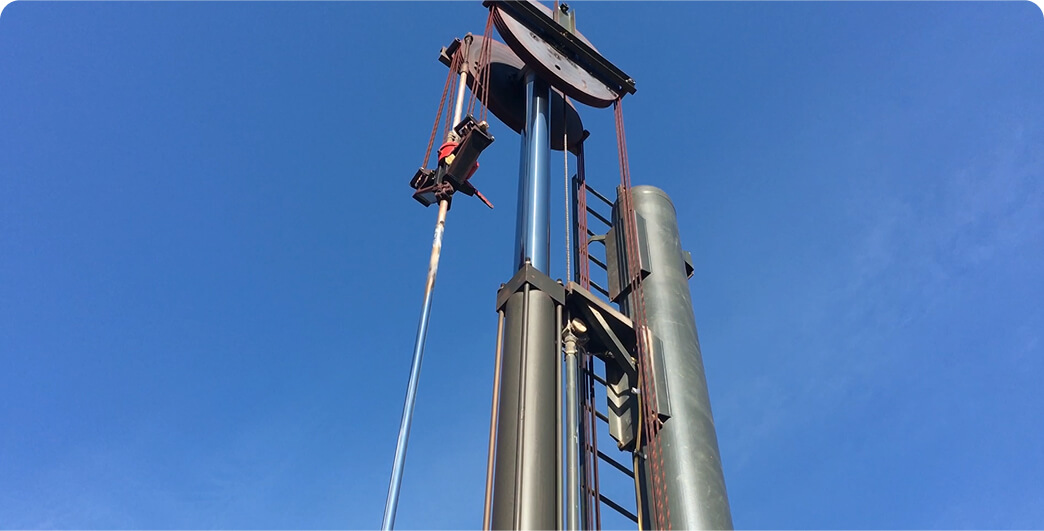

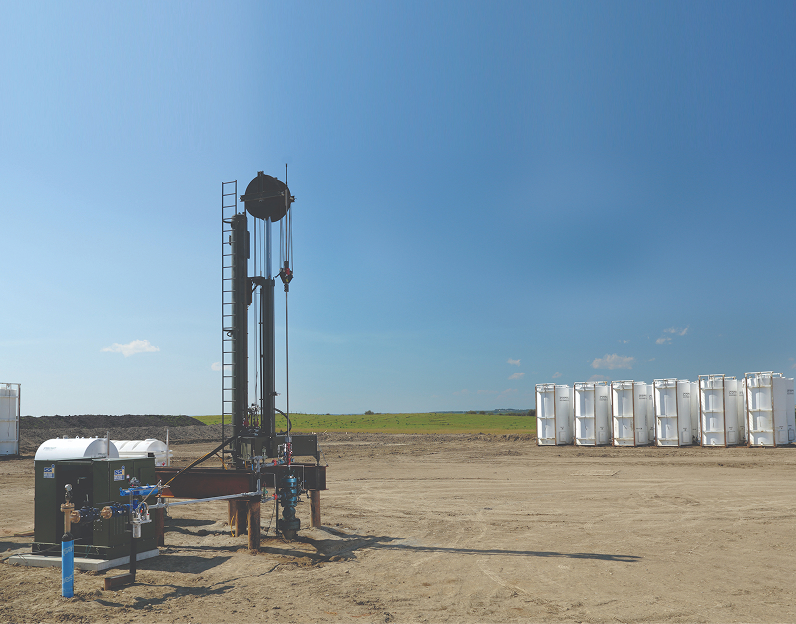

Our Pumping Units

Determines the Stroke Length and Lifting Capacity
Patented three chamber hydraulic cylinder using nitrogen as counterweight and hydraulic fluid to move the fluid
The pumping unit has a 2:1 stroke length ratio (cylinder only moves at 50% of Polished Rod Stroke length

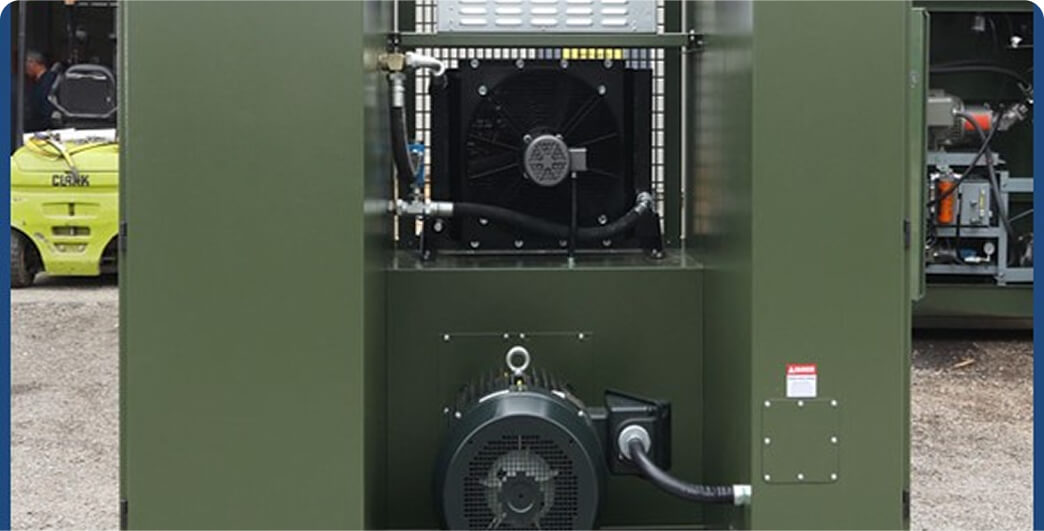

Our Hydraulic Power Units (HPU)

Brains and Powertrain
Patented auto-stroke Logic and Smart Speed Logic
Increase/decrease speeds and change stroke lengths at a touch of a button while production continues
Integrated Pump Off Control and Load Cell

Pumping Units

250
